Xantrex 12V 410Ah Lithium-Ion Battery

Lithium-Ion Battery

Xantrex 12V 410Ah Lithium-Ion Battery

UL 1973 Certified, High cycle Lithium-Ion (LiFePO₄) battery with built in BMS. Heavy-duty metal enclosure battery for taking on the most industrial environments and scenarios. Custom contactor BMS for high surge currents durability in punishing requirements. Key component of the Xantrex FREEDOM eGEN System.

Learn More

More Power in Less Space

The Xantrex Lithium-Ion Iron Phosphate (LiFePO₄) battery is suited for all sorts of applications. Equipped with redundant safety features, the Xantrex Lithium-Ion battery is UL 1973 certified and is the safest in the market today. Specifically designed to withstand the harsh operating environments of mobile and marine applications, the Xantrex Lithium-Ion battery lasts up to 6,000 cycles compared to a traditional lead acid or AGM battery, which typically lasts 400-500 cycles.

The Xantrex Lithium-Ion battery offers exceptional power density and is also available with a heating blanket option if installation is outside the main cabin. Optional remote State-Of-Charge display allows quick review of the state of the battery. Internal integration with the vehicle allows alternator control. RV-C communications for status and system integration.

Certifications:

UN/DOT 38.3 Lithium Ion (Pending)

Applications:

Recreational Vehicles
Heavy Duty Trucks
Work Trucks
Marine
Specialty Vehicles

Available in:

410Ah Lithium-Ion Battery

410Ah/12V

PN: 884-0410-12

Internal heater built in for operation in environments below freezing. Automatic action using shore power detection to not drain the battery when not required.

Capable of being charged up to 55°C/131°F allows extreme environment recharge without damage to the battery.

Lithium Iron Phosphate vs. Lead Acid

With the advances in technology, you can get more charge cycles and more energy per cycle from a LiFePO₄ battery than a traditional AGM or Gel Cell lead acid battery.

Product Installation Videos

Features

View SOC and faults directly
Extreme high and low temperatures
Remote on/off and fault
Self protection BMS included

Dimensions

XANTREX 12V 410AH LITHIUM-ION BATTERY

Battery Specification

410Ah Lithium-Ion Battery

Part Number

884-0410-12

Battery Voltage

12V

Nominal True Capacity

410Ah

Nominal Voltage

12.8V

Nominal Watt Hours

5248Wh

Internal Impedence

<5mΩ

Charge Voltage

14.6V

Recommended Float Charge Voltage

14.0V

Recommended Charge Current

≤ 250A

Allowed Max Charge Current

250A

Output Voltage Range

11.2–14.4V

Recommended Discharge Current

≤ 250A

Max Continuous Discharge Current

250A

Pulse Discharge Current

< 1000A for 1 second and < 500A for 10 seconds

Discharge Cut-off Voltage

11.2V

Cycle Life to 80% Health

4500 (0.5C, 25°C, 80% Depth of Discharge) – increased cycle life with ideal conditions

Environmental

410Ah Lithium-Ion Battery

Charging Temperature Range

32 – 131°F (0 – 55°C)

Discharging Temperature Range

-4 – 131°F (-20 – 55°C)

Storage Period 1 Week

-4 – 113°F (-20 – 45°C)

Storage Period 1 Month

14 – 113°F (-10 – 45°C)

Storage Period 6 Months

50 – 77°F (10 – 25°C)

Mechanical

410Ah Lithium-Ion Battery

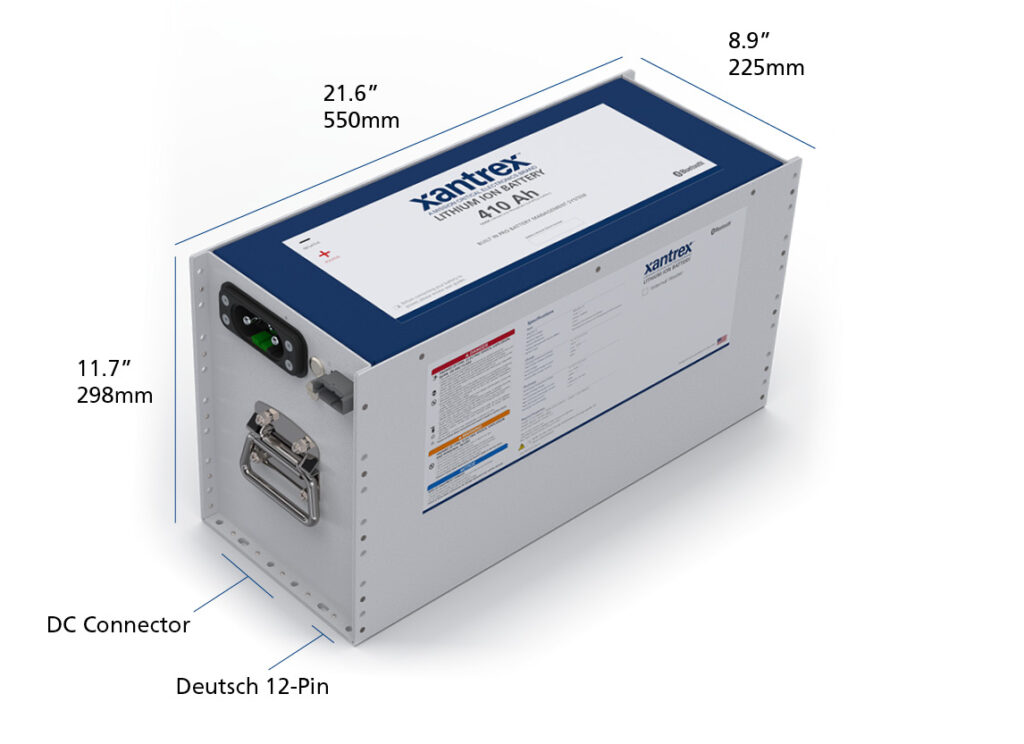

Dimensions

21.6” x 8.9” x 11.7” (550mm x 225mm x 298mm)

Weight

92.0lbs (41.7kg)

Battery Terminals

Rebling 7010-3 (5/13″ Holes)

Carrying Capability

Two Foldout Handles

Mounting Orientation

Side label or top label up
